Manufacturing test

Home Products

Our Products

Salient Features‘Maintenance Free’ Glandless Live Load DesignOne Piece Integral Ball Stem CombinationMinimum Cavity & Full Flow EfficientNo Backlash in Stem & Ball even after prolonged service.Exceptionally Low Torque as compared to Plug Valve.Technical SpecificationDesign Standard : BS EN ISO 17292:2004 (Formerly BS 5351)Drilling : ASA #150 / DIN 2632/2633 / BS 10 Table D, E or F / Customer Specified.Face to Face : ANSI B 16.10 / DIN 3202 / BS EN 558-1/2Lining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. OptionDuctile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining Material PFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Body (Shell) – 20 Kg/Cm²Hydraulic Test¥ : Seat – 11 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C.Optional Design & ComponentsAntistatic ClipPneumatic ActuatorGear Box
LINED BALL VALVE
VIEW DETAILS
Salient FeaturesMaintenance Free’ High Performance Design.Bubble Tight Closer provides process efficiency.Dynamic Live Loaded Seal Design give super safe operation.Intact Performance in severe conditions of corrosion, abrasion, and temperature fluctuation.Technical SpecificationDesign Standard : BS EN 593:2004 (Formerly BS 5155)Drilling : ANSI B16.5 / DIN PN10/16Face to Face : API 609 / DIN 3202 K1 / BS 5155 / ISO 5752 / BS EN 558-1/2Lining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. OptionCast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / S.S.304ASTM A351 Gr. CF8M / S.S.316Lining MaterialPFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Seat – 11 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C
WEFAR TYPE LINED BUTTERFLY VALVE
VIEW DETAILS
Salient FeaturesCavity Less High Performance Design.Zero Leakage (Class VI Leakage Rate) due to large sealing area.Unique Lining makes it Fully Locked from Top, Bottom & Port.Totally Maintenance Free Design.Technical SpecificationDesign Standard : BS 5158:1989Flange : As per ANSI B16.5 / B16.42Drilling : ASA #150 /DIN 2632/33 / BS 10 TABLE D, E, FLining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining MaterialPFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Body (Shell) – 20 Kg/Cm²,Seat – 10 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C.Optional Design & ComponentsAnti-static ClipGear BoxPneumatic ActuatorJacketed Plug Valve DesignSleeved Plug Valve Design
LINED PLUG VALVE
VIEW DETAILS
valve

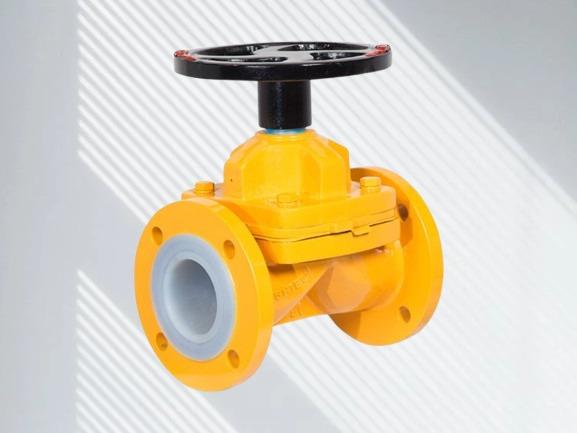

LINED DIAPHRAGM VALVE
VIEW DETAILS
Salient FeaturesDrip Tube IndicationInert to a wide range of Corrosive ChemicalsEliminates need of using expensive, exotic alloys.Technical SpecificationFlange : As per ANSI B16.5 / B16.42Face to Face : DIN 3202Lining Thickness : 3 to 5 mmMaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining Material PFA | FEP | PVDF | PPTest & Inspection DataHydraulic Test¥ : Body(Shell) – 15 Kg/Cm²Spark Test : 15 K.V. D.COptional Design & ComponentsFULL VIEW (GLASS TUBE) DESIGN
SIGHT FLOW INDICATOR LINED
VIEW DETAILS
Technical SpecificationFlange : As per ANSI B16.5 / B 16.42Face to Face : As per ANSI B 16.5 #150Lining Thickness : 3 to 5 mmOther Flange Drillings like, DIN 2632 / 2633, BS 10 Table D, E or F are also available on request.MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBSteel Fabrication – ASTM A234 Gr.WPB with Flanges are as per ASTM A105 / IS 2062.Lining Material PFA | FEP | PVDF |PP | HDPETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
UNEQ CROSS
VIEW DETAILS

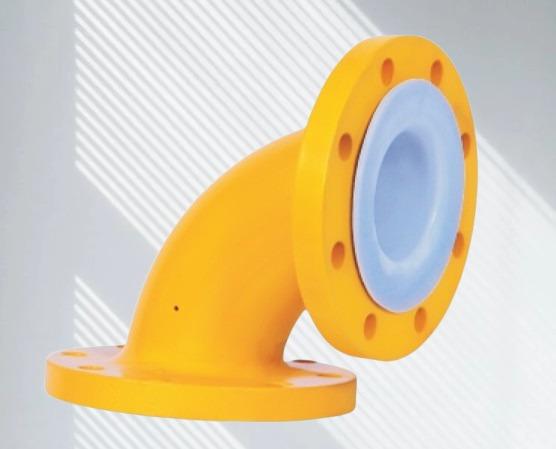

Technical SpecificationFlange : As per ANSI B16.5 / B 16.42Face to Face : As per ANSI B 16.5 #150Lining Thickness : 3 to 5 mmOther Flange Drillings like, DIN 2632 / 2633, BS 10 Table D, E or F are also available on request.*Rotating Flange is also available on request.MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBSteel Fabrication – ASTM A234 Gr.WPB with Flanges are as per ASTM A105 / IS 2062.Lining Material PVDF | PP | HDPE | PTFETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
LINED BEND
VIEW DETAILS

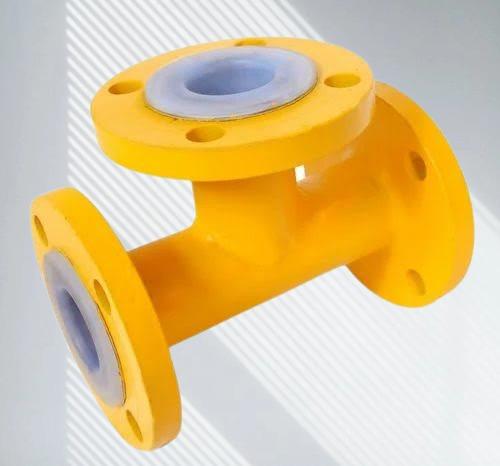

Technical SpecificationFlange : As per ANSI B16.5 / B 16.42Face to Face : As per ANSI B 16.5 #150Lining Thickness : 3 to 5 mmOther Flange Drillings like, DIN 2632 / 2633, BS 10 Table D, E or F are also available on request.MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBSteel Fabrication – ASTM A234 Gr.WPB with Flanges are as per ASTM A105 / IS 2062.Lining Material PFA | FEP | PVDF |PP | HDPETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
LINED TEE
VIEW DETAILS

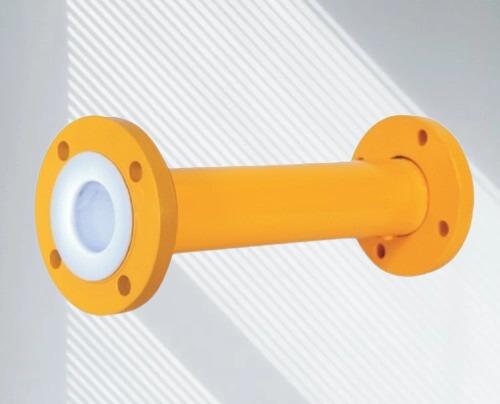

MaterialM.O.C. OptionPIPESEAMLESS CS ASTM A106 GR.B, SCH.-40ASTM A312 TP 304, SCH.-40FLANGEIS 2062 / ASTM A105ASTM A351 GR. CF8Lining MaterialPTFE | PVDF | PP | HDPETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
LINED PIPE
VIEW DETAILS

Filter using tags

Ms Lined Pipe Fep Lined PipesPFA Lined PipesTeflon Coated Pipes All Types Lined Pipes Lined TeeTeflon Lined TeeFep Lined TeePFA Lined TeeAll Type Lined TeeLined Band PFA Band PFA Lined BandFep Band Fep Lined BandAll Types Lined BandLined Valve Lined Diaphragm Valve Teflon Lined Diaphragm PFA Diaphragm Valve PFA Seated Valve Fep Lined Diaphragm Valve Fep Diaphragm Valve Lined All Types Valve Seated All Types ValveLined Plug Valve PFA Plug Valve Fep Plug Valve Teflon Lined Plug Valve Lined Flanged Valve Teflon Coated Valve Teflon Seated Valve Teflon Lined Valve Lined Butterfly ValveTeflon Lined Butterfly Valve PFA Lined Butterfly Valve Fep Lined Butterfly Valve Fep Valve All Types Lined Valve PFA Valve Butterfly Valve Fep Butterfly Valve PFA Butterfly Valve fep ball valvelined ball valvepfa ball valveLined Ball Valve Teflon Lined Ball ValveFep Lined Ball Valve PFA Lined Ball Valve All Types Teflon Coated Valve Teflon Seated Ball Valve Ball ValveFep Ball Valve PFA Ball Valve LINED BALL VALVE ManufacturerLINED BALL VALVE ExporterLINED BALL VALVE DealerLINED BALL VALVE TraderLINED BALL VALVE DistributorLINED BALL VALVE Manufacturer In MumbaiLINED BALL VALVE Manufacturer In AhmedabadLINED BALL VALVE Manufacturer In VadodaraLINED BALL VALVE Manufacturer In ThaneLINED BALL VALVE Manufacturer In HyderabadLINED BALL VALVE Manufacturer In ChennaiLINED BALL VALVE Manufacturer In PuneLINED BALL VALVE Manufacturer In DelhiLINED BALL VALVE Manufacturer In ValsadLINED BALL VALVE Manufacturer In SecunderabadLINED BALL VALVE Manufacturer In GujaratLINED BALL VALVE Manufacturer In MaharashtraLINED BALL VALVE Manufacturer In TelanganaLINED BALL VALVE Manufacturer In Tamil Nadu
Salient Features‘Maintenance Free’ Glandless Live Load DesignOne Piece Integral Ball Stem CombinationMinimum Cavity & Full Flow EfficientNo Backlash in Stem & Ball even after prolonged service.Exceptionally Low Torque as compared to Plug Valve.Technical SpecificationDesign Standard : BS EN ISO 17292:2004 (Formerly BS 5351)Drilling : ASA #150 / DIN 2632/2633 / BS 10 Table D, E or F / Customer Specified.Face to Face : ANSI B 16.10 / DIN 3202 / BS EN 558-1/2Lining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. OptionDuctile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining Material PFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Body (Shell) – 20 Kg/Cm²Hydraulic Test¥ : Seat – 11 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C.Optional Design & ComponentsAntistatic ClipPneumatic ActuatorGear Box
View Details
LINED BALL VALVE
Salient FeaturesMaintenance Free’ High Performance Design.Bubble Tight Closer provides process efficiency.Dynamic Live Loaded Seal Design give super safe operation.Intact Performance in severe conditions of corrosion, abrasion, and temperature fluctuation.Technical SpecificationDesign Standard : BS EN 593:2004 (Formerly BS 5155)Drilling : ANSI B16.5 / DIN PN10/16Face to Face : API 609 / DIN 3202 K1 / BS 5155 / ISO 5752 / BS EN 558-1/2Lining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. OptionCast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / S.S.304ASTM A351 Gr. CF8M / S.S.316Lining MaterialPFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Seat – 11 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C
View Details
WEFAR TYPE LINED BUTTERF
Salient FeaturesCavity Less High Performance Design.Zero Leakage (Class VI Leakage Rate) due to large sealing area.Unique Lining makes it Fully Locked from Top, Bottom & Port.Totally Maintenance Free Design.Technical SpecificationDesign Standard : BS 5158:1989Flange : As per ANSI B16.5 / B16.42Drilling : ASA #150 /DIN 2632/33 / BS 10 TABLE D, E, FLining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining MaterialPFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Body (Shell) – 20 Kg/Cm²,Seat – 10 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C.Optional Design & ComponentsAnti-static ClipGear BoxPneumatic ActuatorJacketed Plug Valve DesignSleeved Plug Valve Design
View Details
LINED PLUG VALVE
valve
View Details
LINED DIAPHRAGM VALVE
Salient FeaturesDrip Tube IndicationInert to a wide range of Corrosive ChemicalsEliminates need of using expensive, exotic alloys.Technical SpecificationFlange : As per ANSI B16.5 / B16.42Face to Face : DIN 3202Lining Thickness : 3 to 5 mmMaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining Material PFA | FEP | PVDF | PPTest & Inspection DataHydraulic Test¥ : Body(Shell) – 15 Kg/Cm²Spark Test : 15 K.V. D.COptional Design & ComponentsFULL VIEW (GLASS TUBE) DESIGN
View Details
SIGHT FLOW INDICATOR LIN
Technical SpecificationFlange : As per ANSI B16.5 / B 16.42Face to Face : As per ANSI B 16.5 #150Lining Thickness : 3 to 5 mmOther Flange Drillings like, DIN 2632 / 2633, BS 10 Table D, E or F are also available on request.MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBSteel Fabrication – ASTM A234 Gr.WPB with Flanges are as per ASTM A105 / IS 2062.Lining Material PFA | FEP | PVDF |PP | HDPETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
View Details
UNEQ CROSS
Technical SpecificationFlange : As per ANSI B16.5 / B 16.42Face to Face : As per ANSI B 16.5 #150Lining Thickness : 3 to 5 mmOther Flange Drillings like, DIN 2632 / 2633, BS 10 Table D, E or F are also available on request.*Rotating Flange is also available on request.MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBSteel Fabrication – ASTM A234 Gr.WPB with Flanges are as per ASTM A105 / IS 2062.Lining Material PVDF | PP | HDPE | PTFETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
View Details
LINED BEND
Technical SpecificationFlange : As per ANSI B16.5 / B 16.42Face to Face : As per ANSI B 16.5 #150Lining Thickness : 3 to 5 mmOther Flange Drillings like, DIN 2632 / 2633, BS 10 Table D, E or F are also available on request.MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBSteel Fabrication – ASTM A234 Gr.WPB with Flanges are as per ASTM A105 / IS 2062.Lining Material PFA | FEP | PVDF |PP | HDPETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
View Details
LINED TEE
MaterialM.O.C. OptionPIPESEAMLESS CS ASTM A106 GR.B, SCH.-40ASTM A312 TP 304, SCH.-40FLANGEIS 2062 / ASTM A105ASTM A351 GR. CF8Lining MaterialPTFE | PVDF | PP | HDPETest & Inspection DataResins are confirming to the requirements of ASTM F1545-97 (2003)Hydraulic Test : 29 Kg/Cm² After LiningSpark Test : 15 KV D.C After Lining
View Details
LINED PIPE

  • Filter Using Product Tags

Ms Lined Pipe |Fep Lined Pipes |PFA Lined Pipes |Teflon Coated Pipes |All Types Lined Pipes |Lined Tee |Teflon Lined Tee |Fep Lined Tee |PFA Lined Tee |All Type Lined Tee |Lined Band |PFA Band |PFA Lined Band |Fep Band |Fep Lined Band |All Types Lined Band |Lined Valve |Lined Diaphragm Valve |Teflon Lined Diaphragm |PFA Diaphragm Valve |PFA Seated Valve |Fep Lined Diaphragm Valve |Fep Diaphragm Valve |Lined All Types Valve |Seated All Types Valve |Lined Plug Valve |PFA Plug Valve |Fep Plug Valve |Teflon Lined Plug Valve |Lined Flanged Valve |Teflon Coated Valve |Teflon Seated Valve |Teflon Lined Valve |Lined Butterfly Valve |Teflon Lined Butterfly Valve |PFA Lined Butterfly Valve |Fep Lined Butterfly Valve |Fep Valve |All Types Lined Valve |PFA Valve |Butterfly Valve |Fep Butterfly Valve |PFA Butterfly Valve |fep ball valve |lined ball valve |pfa ball valve |Lined Ball Valve |Teflon Lined Ball Valve |Fep Lined Ball Valve |PFA Lined Ball Valve |All Types Teflon Coated Valve |Teflon Seated Ball Valve |Ball Valve |Fep Ball Valve |PFA Ball Valve |LINED BALL VALVE Manufacturer |LINED BALL VALVE Exporter |LINED BALL VALVE Dealer |LINED BALL VALVE Trader |LINED BALL VALVE Distributor |LINED BALL VALVE Manufacturer In Mumbai |LINED BALL VALVE Manufacturer In Ahmedabad |LINED BALL VALVE Manufacturer In Vadodara |LINED BALL VALVE Manufacturer In Thane |LINED BALL VALVE Manufacturer In Hyderabad |LINED BALL VALVE Manufacturer In Chennai |LINED BALL VALVE Manufacturer In Pune |LINED BALL VALVE Manufacturer In Delhi |LINED BALL VALVE Manufacturer In Valsad |LINED BALL VALVE Manufacturer In Secunderabad |LINED BALL VALVE Manufacturer In Gujarat |LINED BALL VALVE Manufacturer In Maharashtra |LINED BALL VALVE Manufacturer In Telangana |LINED BALL VALVE Manufacturer In Tamil Nadu
