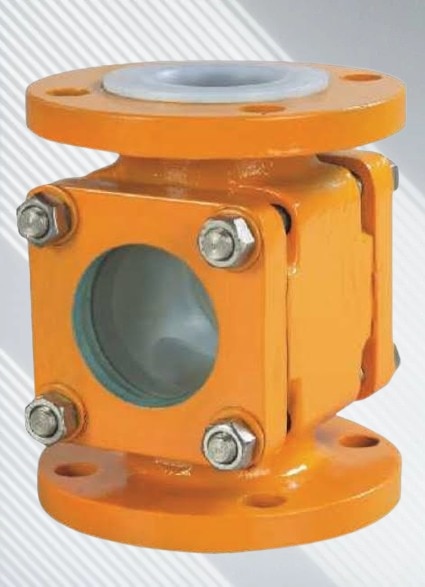

Sight Flow Indicator Lined by PRIFLON

SIGHT FLOW INDICATOR LINED

Share with
Share this on :

Description

Product details

Salient Features Drip Tube Indication Inert to a wide range of Corrosive Chemicals Eliminates need of using expensive, exotic alloys. Technical Specification Flange : As per ANSI B16.5 / B16.42 Face to Face : DIN 3202 Lining Thickness : 3 to 5 mm Material M.O.C. Option Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr.WCB ASTM A351 Gr. CF8 / AISI S.S.304 ASTM A351 Gr. CF8M / AISI S.S.316 Lining Material PFA | FEP | PVDF | PP Test & Inspection Data Hydraulic Test¥ : Body(Shell) – 15 Kg/Cm² Spark Test : 15 K.V. D.C Optional Design & Components FULL VIEW (GLASS TUBE) DESIGN

Other Products

Related Products

Salient Features ‘Maintenance Free’ Glandless Live Load Design One Piece Integral Ball Stem Combination Minimum Cavity & Full Flow Efficient No Backlash in Stem & Ball even after prolonged service. Exceptionally Low Torque as compared to Plug Valve. Technical Specification Design Standard : BS EN ISO 17292:2004 (Formerly BS 5351) Drilling : ASA #150 / DIN 2632/2633 / BS 10 Table D, E or F / Customer Specified. Face to Face : ANSI B 16.10 / DIN 3202 / BS EN 558-1/2 Lining Thickness : 3 to 5 mm Testing Standard : BS EN 12266-1&2 (2003) Material M.O.C. Option Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr.WCB ASTM A351 Gr. CF8 / AISI S.S.304 ASTM A351 Gr. CF8M / AISI S.S.316 Lining Material PFA | FEP | PVDF | PP | HDPE Test & Inspection Data Hydraulic Test¥ : Body (Shell) – 20 Kg/Cm² Hydraulic Test¥ : Seat – 11 Kg/Cm² Pneumatic Test¥ : Seat – 6 Kg/Cm² Spark Test :15 K.V. D.C. Optional Design & Components Antistatic Clip Pneumatic Actuator Gear Box
View Details
LINED BALL VALVE
Salient Features Maintenance Free’ High Performance Design. Bubble Tight Closer provides process efficiency. Dynamic Live Loaded Seal Design give super safe operation. Intact Performance in severe conditions of corrosion, abrasion, and temperature fluctuation. Technical Specification Design Standard : BS EN 593:2004 (Formerly BS 5155) Drilling : ANSI B16.5 / DIN PN10/16 Face to Face : API 609 / DIN 3202 K1 / BS 5155 / ISO 5752 / BS EN 558-1/2 Lining Thickness : 3 to 5 mm Testing Standard : BS EN 12266-1&2 (2003) Material M.O.C. Option Cast Steel ASTM A216 Gr.WCB ASTM A351 Gr. CF8 / S.S.304 ASTM A351 Gr. CF8M / S.S.316 Lining Material PFA | FEP | PVDF | PP | HDPE Test & Inspection Data Hydraulic Test¥ : Seat – 11 Kg/Cm² Pneumatic Test¥ : Seat – 6 Kg/Cm² Spark Test :15 K.V. D.C
View Details
WEFAR TYPE LINED BUTTERFLY VALVE
Salient Features Cavity Less High Performance Design. Zero Leakage (Class VI Leakage Rate) due to large sealing area. Unique Lining makes it Fully Locked from Top, Bottom & Port. Totally Maintenance Free Design. Technical Specification Design Standard : BS 5158:1989 Flange : As per ANSI B16.5 / B16.42 Drilling : ASA #150 /DIN 2632/33 / BS 10 TABLE D, E, F Lining Thickness : 3 to 5 mm Testing Standard : BS EN 12266-1&2 (2003) Material M.O.C. Option Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr.WCB ASTM A351 Gr. CF8 / AISI S.S.304 ASTM A351 Gr. CF8M / AISI S.S.316 Lining Material PFA | FEP | PVDF | PP | HDPE Test & Inspection Data Hydraulic Test¥ : Body (Shell) – 20 Kg/Cm², Seat – 10 Kg/Cm² Pneumatic Test¥ : Seat – 6 Kg/Cm² Spark Test :15 K.V. D.C. Optional Design & Components Anti-static Clip Gear Box Pneumatic Actuator Jacketed Plug Valve Design Sleeved Plug Valve Design
View Details
LINED PLUG VALVE
