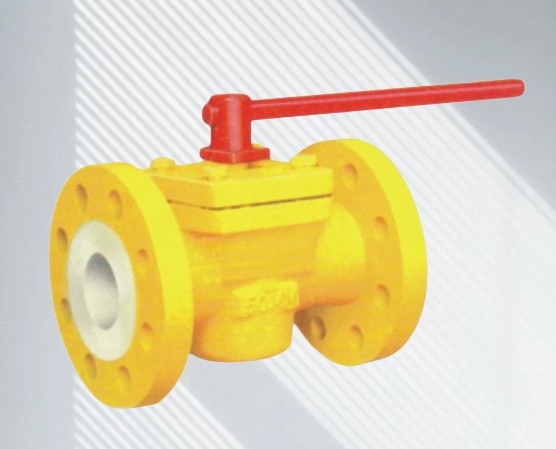

Salient Features Cavity Less High Performance Design. Zero Leakage (Class VI Leakage Rate) due to large sealing area.Unique Lining makes it Fully Locked from Top, Bottom & Port.Totally Maintenance Free Design. Technical Specification Design Standard : BS 5158:1989 Flange : As per ANSI B16.5 / B16.42 Drilling : ASA #150 /DIN 2632/33 / BS 10 TABLE D, E, F Lining Thickness : 3 to 5 mm Testing Standard : BS EN 12266-1&2 (2003) Material M.O.C. Option Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr.WCB ASTM A351 Gr. CF8 / AISI S.S.304 ASTM A351 Gr. CF8M / AISI S.S.316 Lining Material PFA | FEP | PVDF | PP | HDPE Test & Inspection Data Hydraulic Test¥ : Body (Shell) – 20 Kg/Cm², Seat – 10 Kg/Cm² Pneumatic Test¥ : Seat – 6 Kg/Cm² Spark Test :15 K.V. D.C. Optional Design & Components Anti-static Clip Gear Box Pneumatic Actuator Jacketed Plug Valve Design Sleeved Plug Valve Design
