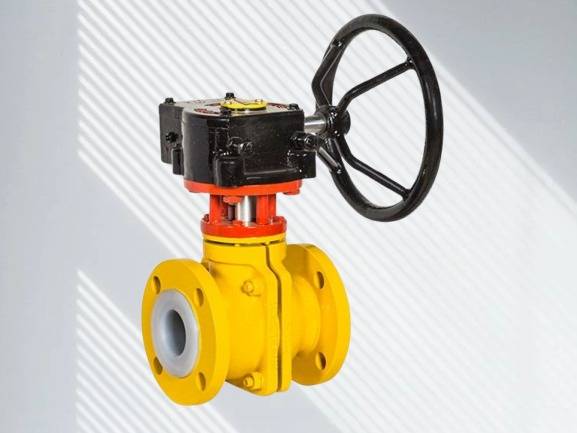

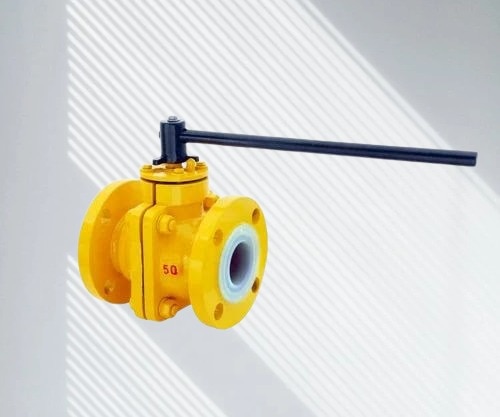

Salient Features ‘Maintenance Free’ Glandless Live Load Design One Piece Integral Ball Stem Combination Minimum Cavity & Full Flow Efficient No Backlash in Stem & Ball even after prolonged service. Exceptionally Low Torque as compared to Plug Valve. Technical Specification Design Standard : BS EN ISO 17292:2004 (Formerly BS 5351) Drilling : ASA #150 / DIN 2632/2633 / BS 10 Table D, E or F / Customer Specified. Face to Face : ANSI B 16.10 / DIN 3202 / BS EN 558-1/2 Lining Thickness : 3 to 5 mm Testing Standard : BS EN 12266-1&2 (2003) Material M.O.C. Option Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr.WCB ASTM A351 Gr. CF8 / AISI S.S.304 ASTM A351 Gr. CF8M / AISI S.S.316 Lining Material PFA | FEP | PVDF | PP | HDPE Test & Inspection Data Hydraulic Test¥ : Body (Shell) – 20 Kg/Cm² Hydraulic Test¥ : Seat – 11 Kg/Cm² Pneumatic Test¥ : Seat – 6 Kg/Cm² Spark Test :15 K.V. D.C. Optional Design & Components Antistatic Clip Pneumatic Actuator Gear Box
